TINES Vibration Isolation Mats

In line with current environmental protection requirements in places where special vibration isolation is required (especially bridges, viaducts, and tunnels located in urbanized zones), an effective solution to protect the environment from adverse impacts of transportation means is the incorporation of vibration isolation mats into rail road construction.

System description

In preparing the implementation of railway infrastructure modernization and construction projects, the optimal selection of construction solutions that minimise the negative impact of train vibrations and noise on the environment is essential. The properties characterising vibration isolation mats, their material parameters, functional and operational features significantly influence vibroacoustic isolation, electrical isolation, and protection against the harmful effects of stray currents on buildings and people.

TINES offers a wide range of vibration isolation mats that vary in terms of material, technical parameters, thickness, and application. This allows for the selection of vibration isolation material according to technical specifications, design requirements, and vibration impact analyses on buildings and people. The use of TINES® vibration isolation mats enhances the comfort of rail passengers and reduces shocks and noise, thereby improving the living standard of residents in proximity to the railway lines.

Depending on their purpose, we distinguish between TINES® vibration isolation mats:

  • slab-track mats STM (STM- Slab-Track Mats) designed for ballast-less surfaces, to be laid under the concrete slab of the rail surface.

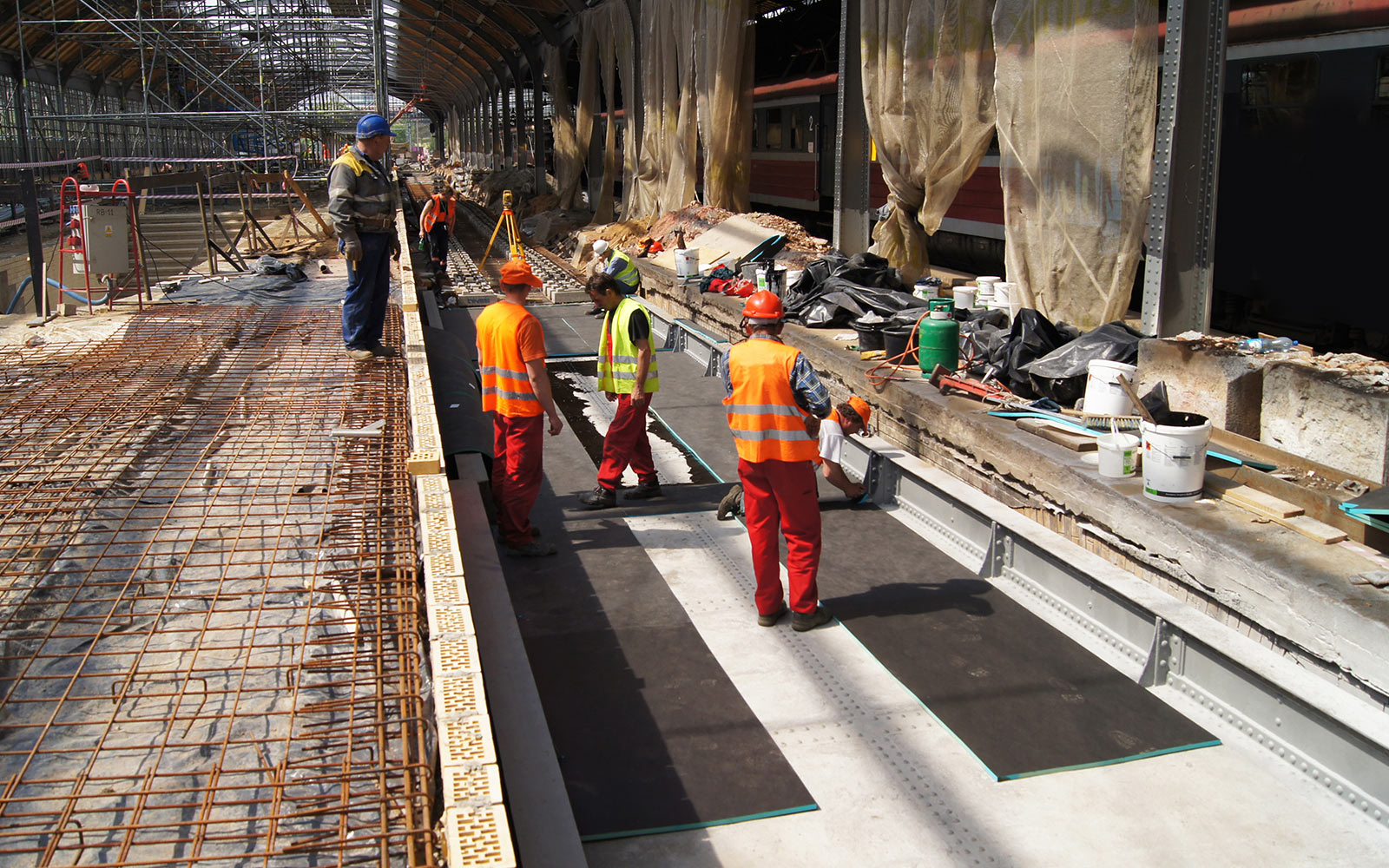

Under-slab anti-vibration mats STM laid on a concrete base under a wet-poured concrete slab.

Under-slab anti-vibration mats STM laid on a concrete base under a precast concrete slab.

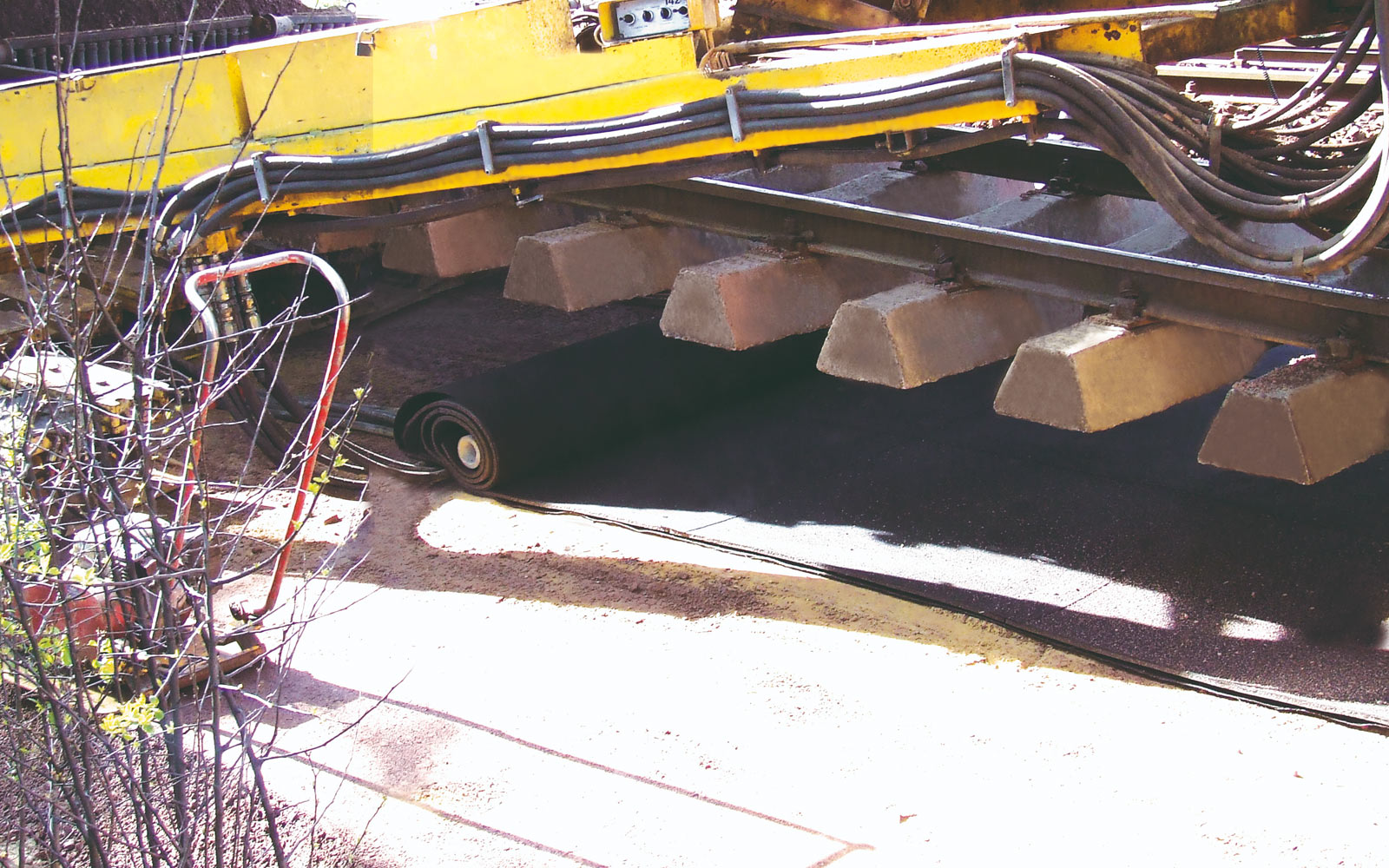

  • Sub-ballast mats SBM (SBM – Sub-Ballast Mats) designed for ballasted track surfaces, to be laid under a layer of crushed stone ballast.

Sub-ballast mats SBM (SBM – Sub-Ballast Mats) designed for ballasted track surfaces, to be laid under a layer of crushed stone ballast.

Sub-ballast anti-vibration mats SBM laid on a soil substrate.

Maty wibroizolacyjne na podłożu betonowym - Tines

Sub-ballast anti-vibration mats SBM laid on a concrete substrate.

Due to the materials used and production technologies, we offer TINES® anti-vibration mats:

  • TINES® Polymat – mats made from polyurethane composite
  • TINES® Rubbermat – mats made from rubber granules with a polyurethane binder.

Advantages of TINES® anti-vibration mats:

  • High flexibility and durability of the material,
  • High fatigue resistance,
  • Resistance to long-term dynamic loads,
  • High elastic properties,
  • High noise and vibration damping properties,
  • Protection of track surfaces from wear of sleepers, rails, and ballast,
  • Quick and simple installation,
  • Resistance to water, high temperatures, and varying climatic conditions,
  • Protection of the environment along tracks from stray currents,
  • Provision of continuous stable support,
  • Customization to meet specific customer requirements.

Documents:

  • National Technical Assessment No. IK – KOT -2021/0137 issue 2, issued by the Railway Institute
  • National Certificate of Conformity of Factory Production Control No. 202-UWB-523, issued by CWB
  • National Declarations of Performance
  • Technical Data Sheets

For preparation of a technical and commercial offer, please contact us at handlowy@tinesrail.com
