In today’s times, the demand for integrated transport solutions is increasing, allowing for more efficient use of infrastructure. The road-rail tram plates TINES TRAM LC-L are an innovative solution that improves transportation systems in cities. In this article, we will discuss their application, functions, and advantages in the context of integrated road and rail surfaces.
Introduction to the TINES TRAM LC-L system

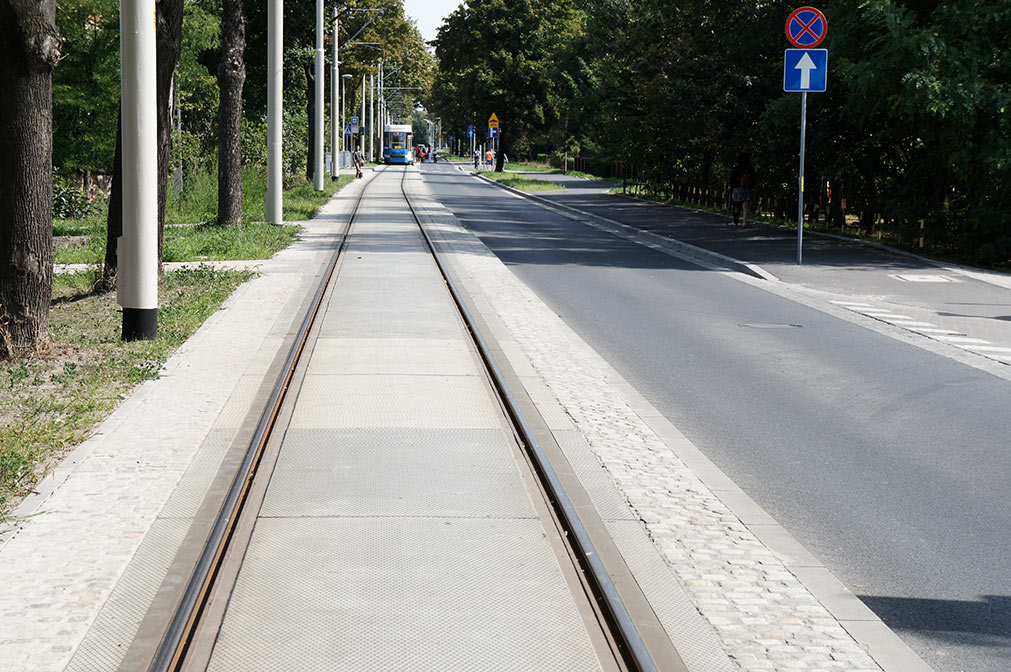

Prefabricated rail-road plates TINES® TRAM LC-L are elements used in ballast-free tram track constructions, which are used in integrated rail-road surface systems. These plates are intended for use in tracks shared with the roadway, segregated tracks, crossings, and pedestrian crossings.
Flexibility of TINES TRAM LC-L applications
TINES TRAM LC-L plates can be used in various tram track configurations, both single and multi-track, on straight sections as well as vertical and horizontal curves. Their versatility makes them suitable for all rail profiles, making them an excellent solution for various urban infrastructure needs.
Dimensions of prefabricated TINES TRAM LC-L plates
TINES TRAM LC-L plates are produced in standard sizes, which facilitate their use in various projects. They are available in widths of 2.40 m, 2.20 m, 2.00 m, and 1.76 m, thicknesses of 0.35 m or 0.40 m, and lengths of 1 m (TINES TRAM LC-L1), 1.5 m (TINES TRAM LC-L1.5), 3 m (TINES TRAM LC-L3), and 4 m (TINES TRAM LC-L4).
Adapted rail channels
Rail channels in prefabricated plates TINES TRAM LC-L are adapted for mounting rails with a profile of 49E1 or 60R2 (Ri60N), allowing them to be used in tracks with widths of 1000 mm or 1435 mm. As a result, TINES TRAM LC-L plates are universal and can be used in various tram system configurations.

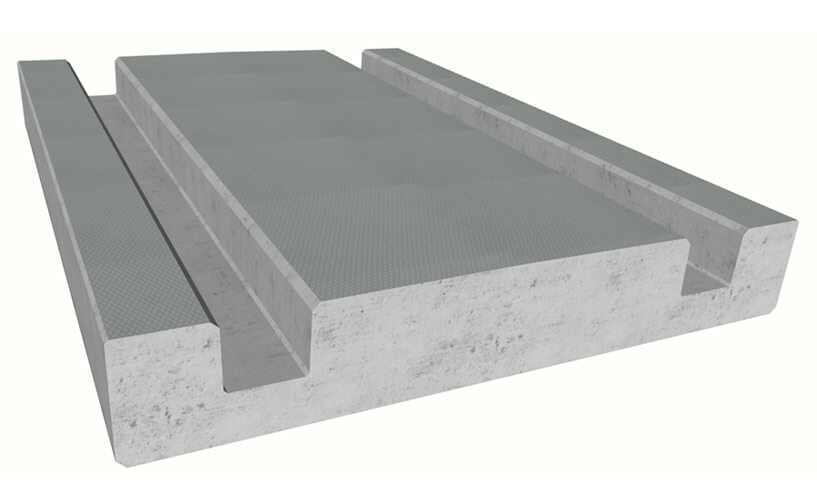

Rail-road tram plates TINES TRAM LC-L
Benefits of using TINES TRAM LC-L plates
- Integration of rail-road surfaces: TINES TRAM LC-L plates allow efficient use of urban space by combining road and tram infrastructure.
- Flexibility: The plates are adapted to various tram track configurations, allowing them to be used in many projects.

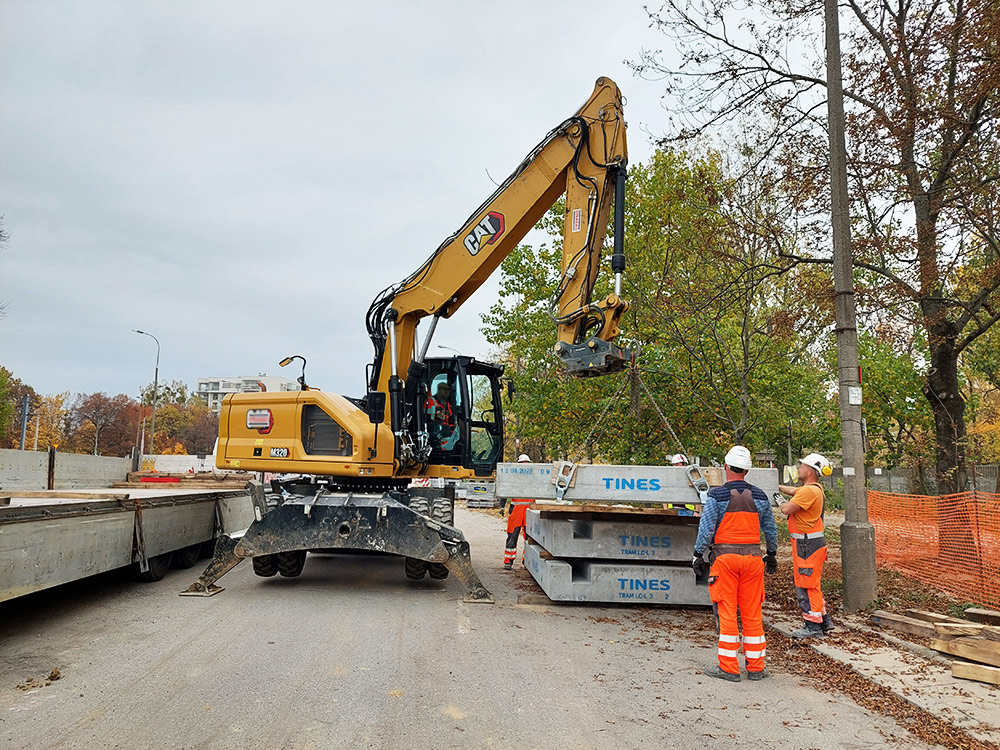

- Quick assembly: Thanks to the prefabrication of the plates, track installation is quick and simple, which translates into lower investment costs and shortening the time of project implementation.
- Durability: TINES TRAM LC-L plates are durable and resistant to atmospheric conditions, ensuring the longevity of the surface.
- Safety: Integrated rail-road surfaces with TINES TRAM LC-L plates provide better visibility for drivers, pedestrians, and tram passengers, contributing to improved road safety.
The road-rail tram plates TINES TRAM LC-L are an innovative and flexible solution for integrated rail-road surfaces. They allow for efficient use of urban space and improve road safety through integration.
